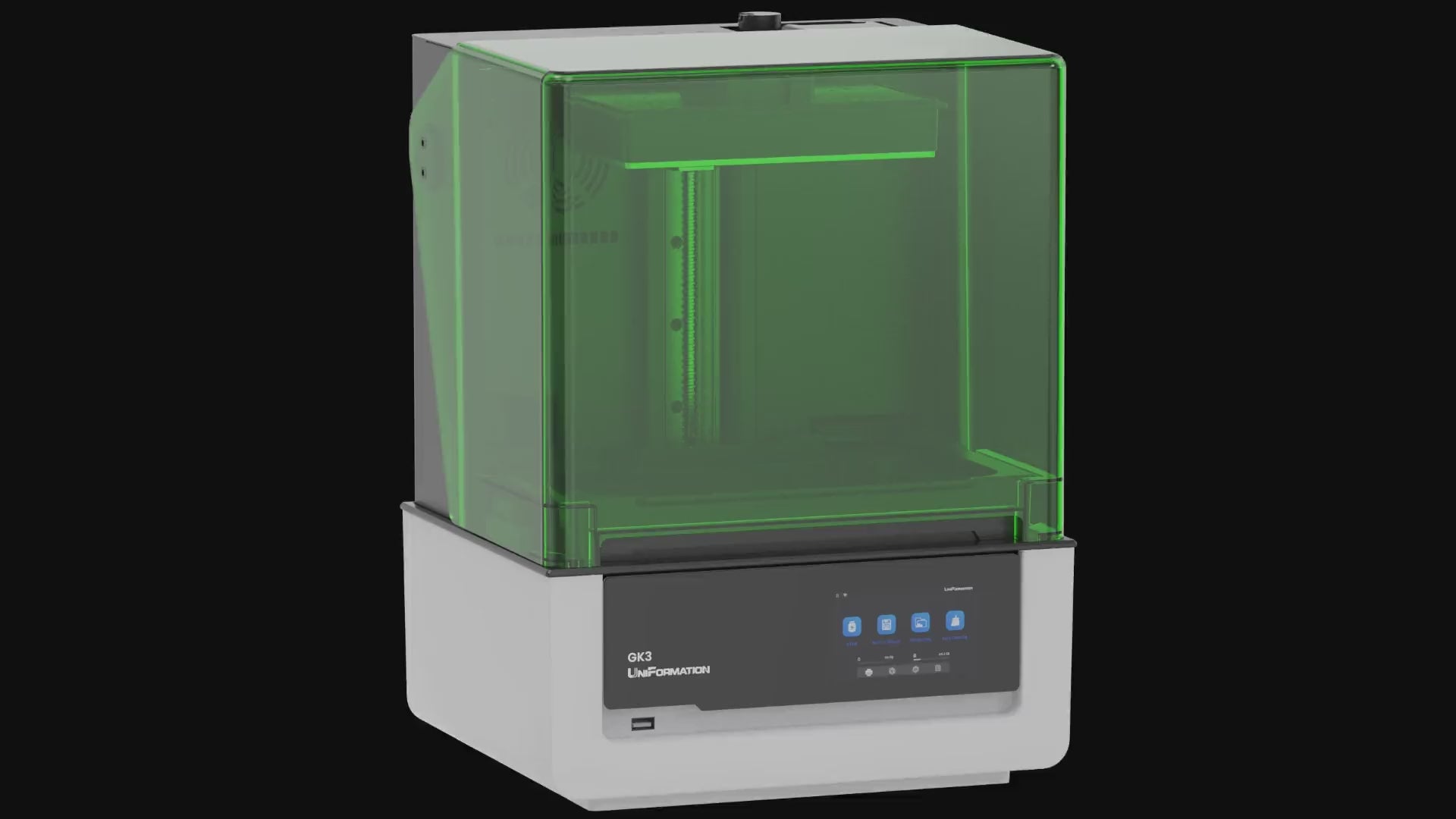

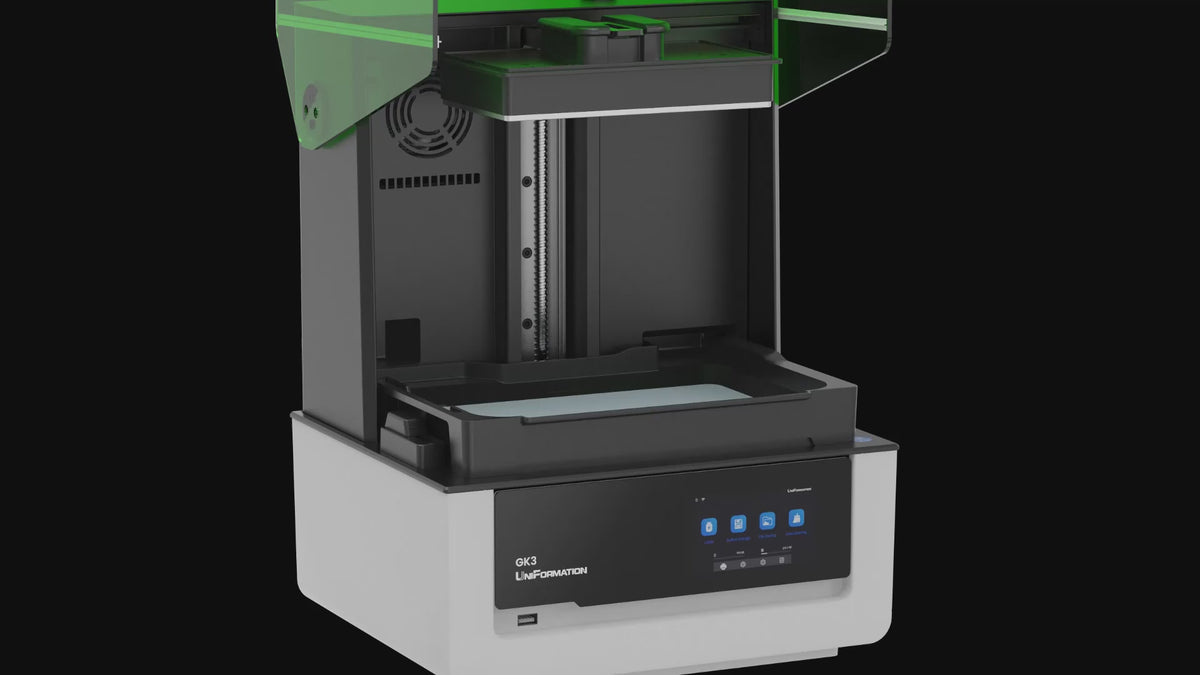

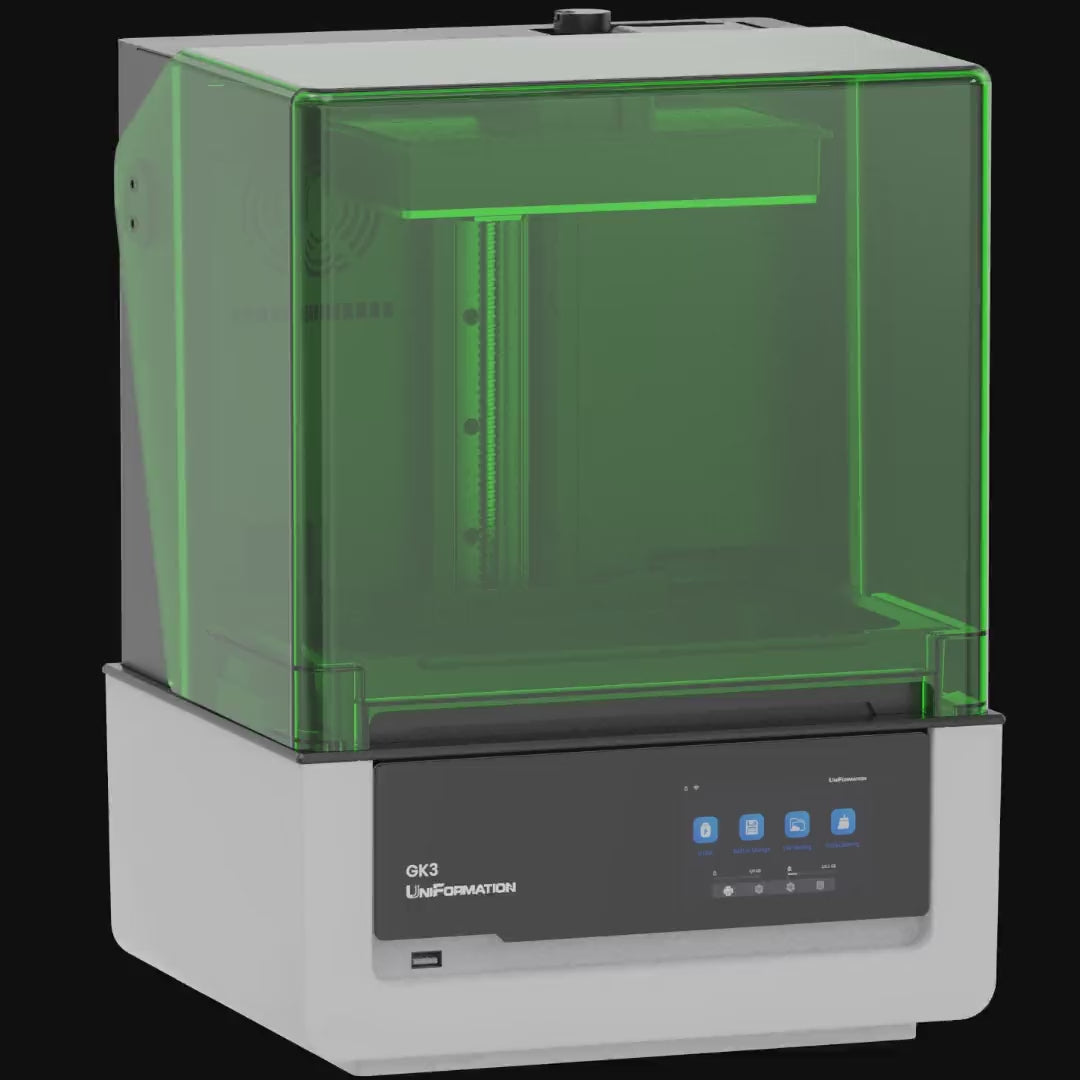

UniFormation GK3 16K Resin 3D Printer

The Heighlight

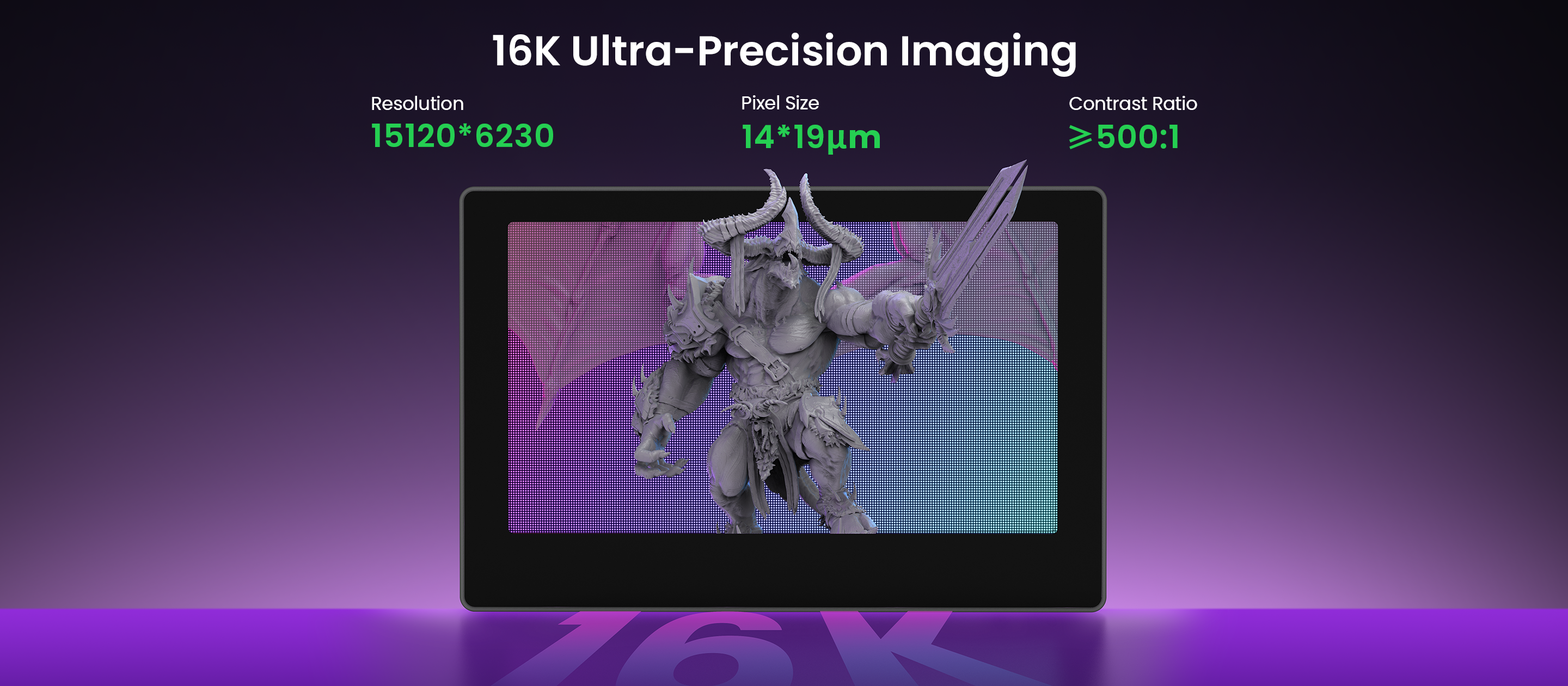

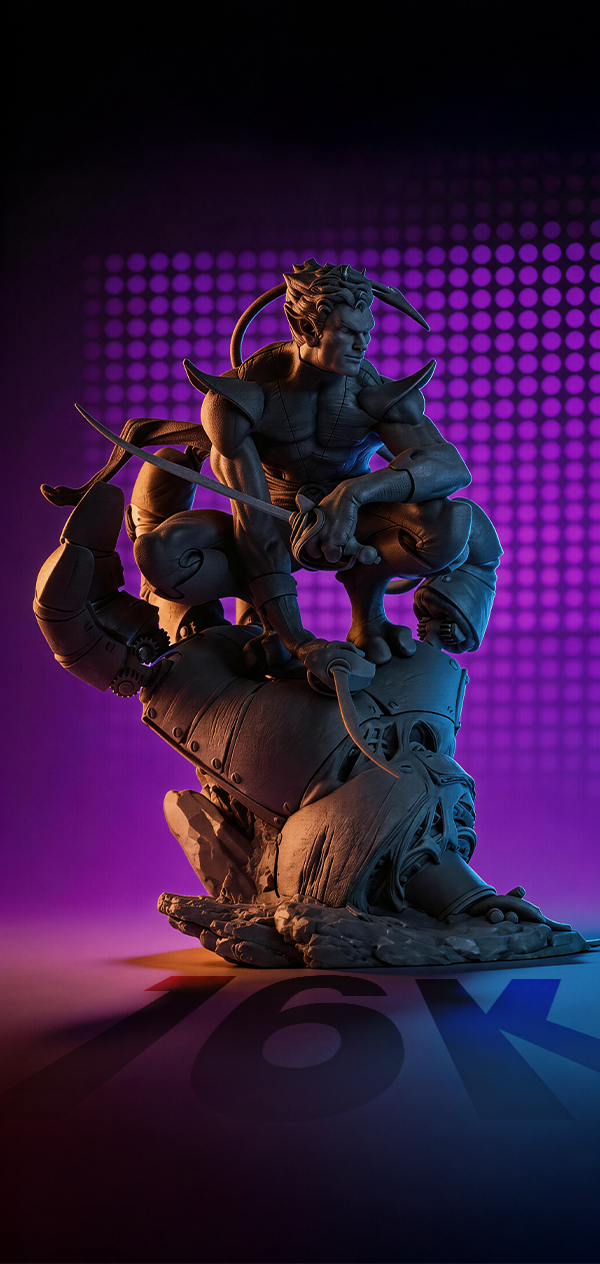

16K Ultra-Precision Imaging

COB Matrix Light Source

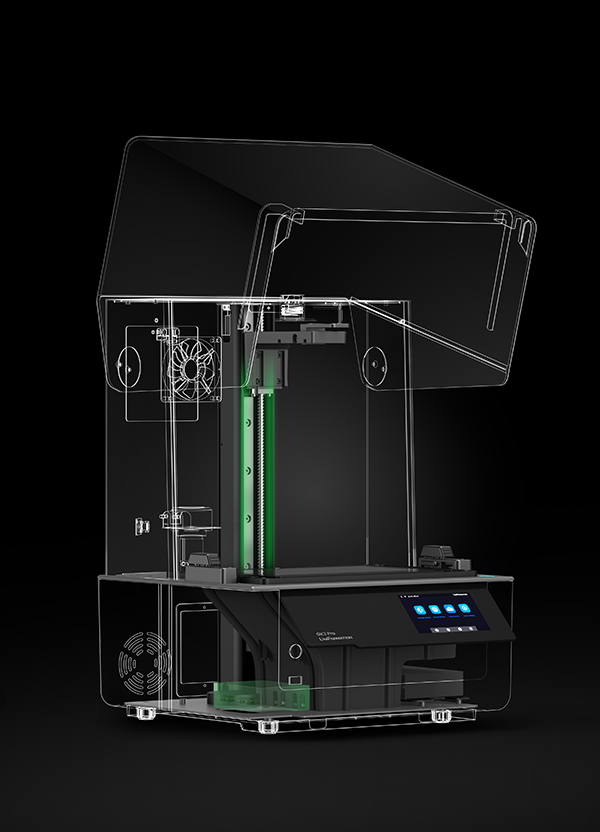

High-Rigidity Frame

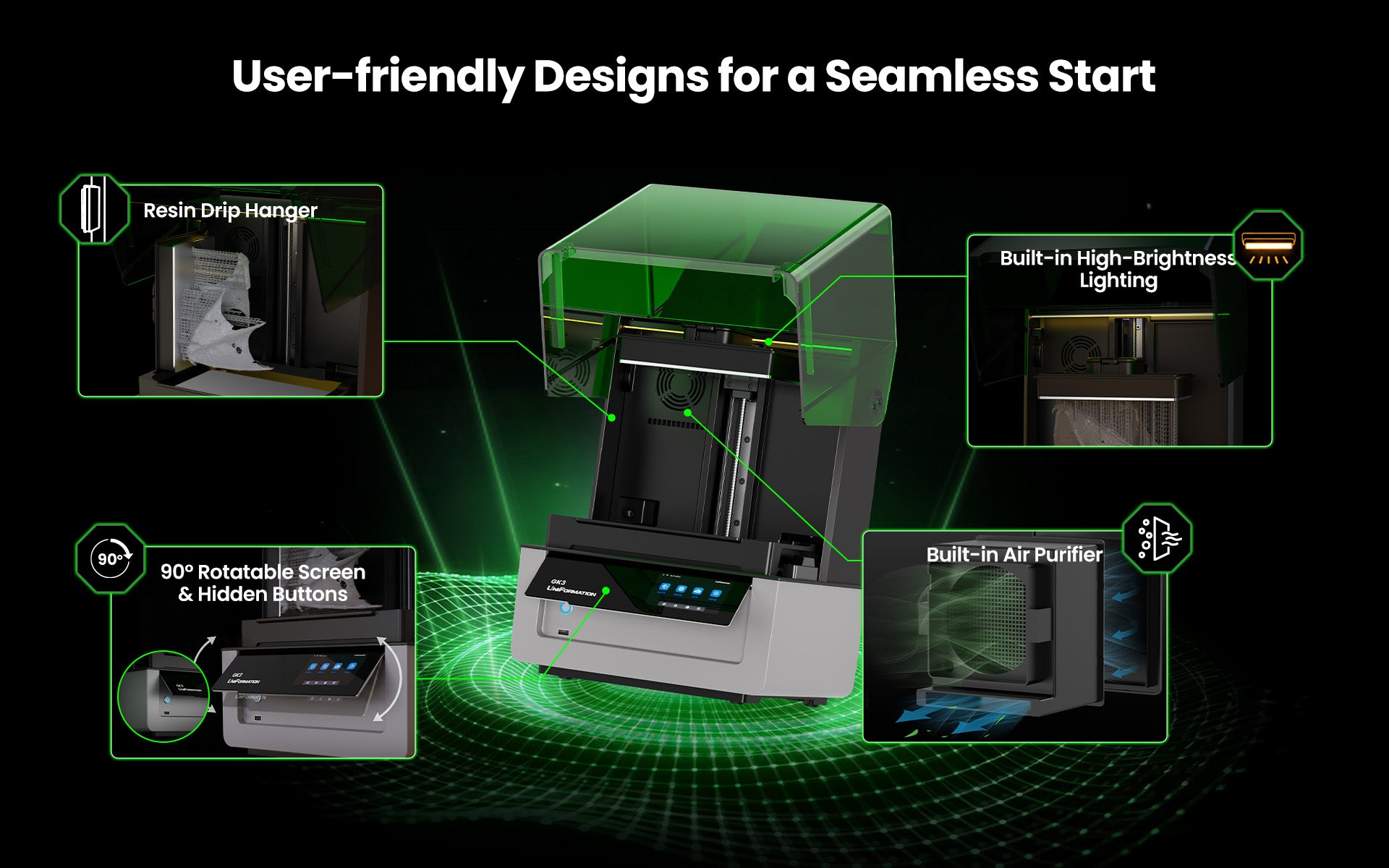

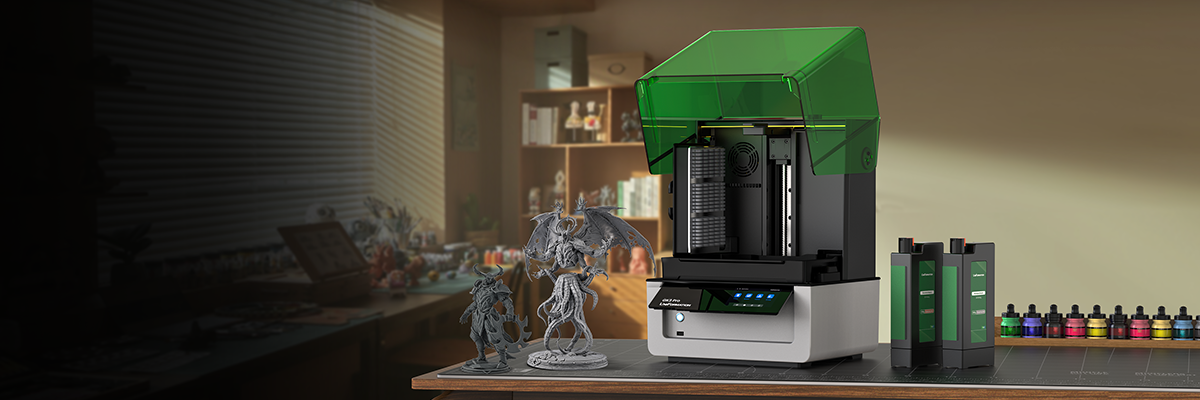

10 User-Friendly Design

Smart Auto Heating

Live Monitoring & Timelapse

Auto Resin Feeding System

Built on Innovation. Perfected in Every Print.

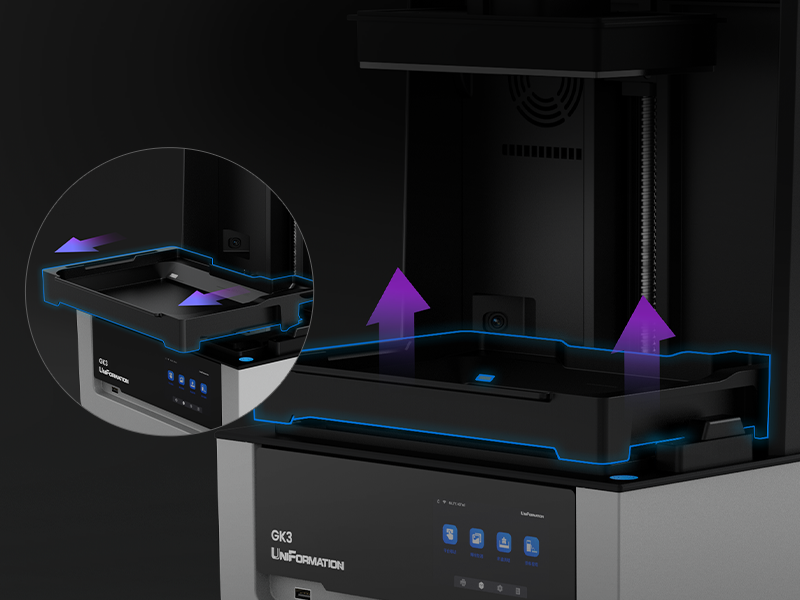

Quick-Release Design

For the build plate and resin vat, fast replacement for a smoother experience.

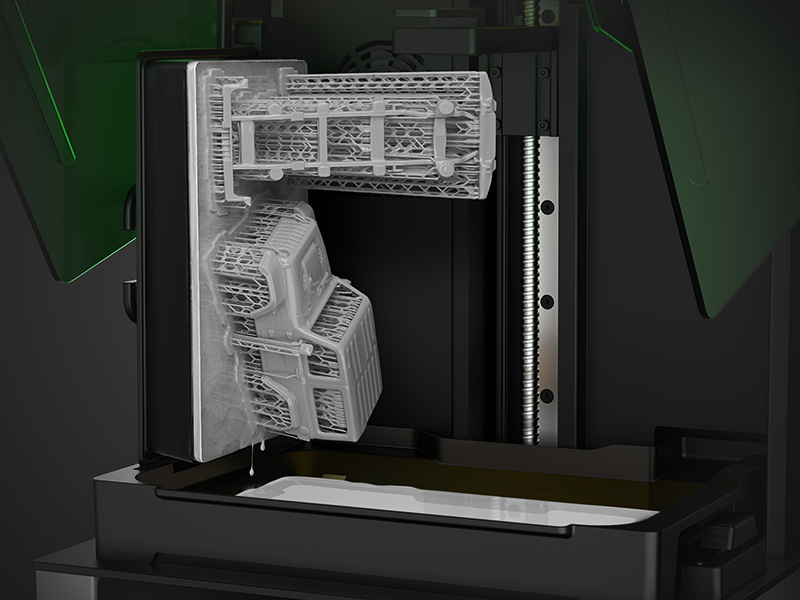

Resin Drip Hanger

Drain excess resin directly into the vat for a cleaner, more efficient workflow.

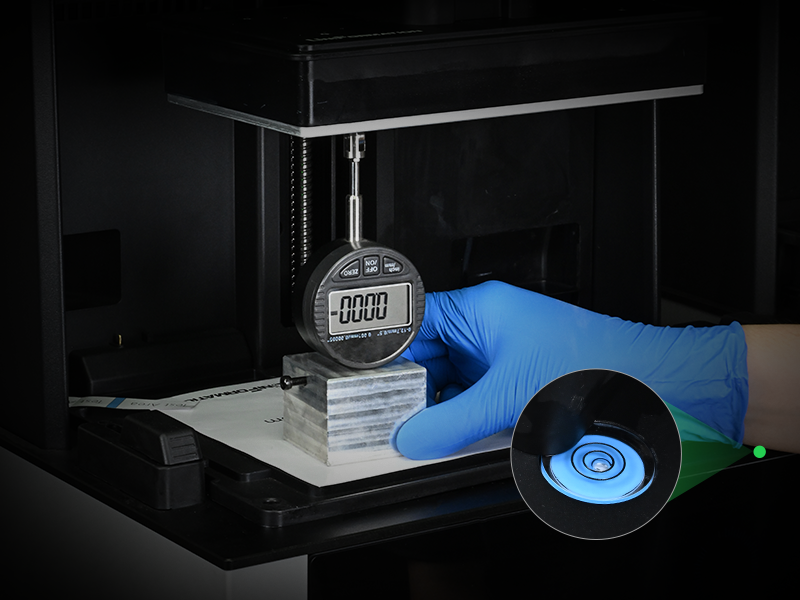

Factory Calibration

Only simple check are needed before use upon unboxing.

COB Matrix Light Source

Achieve consistent curing across the entire build area with a COB Matrix Light Source, delivering up to 88% light uniformity for sharper details and greater dimensional accuracy.

≥88%

Light Uniformity

+20%

Accuracy Improvement

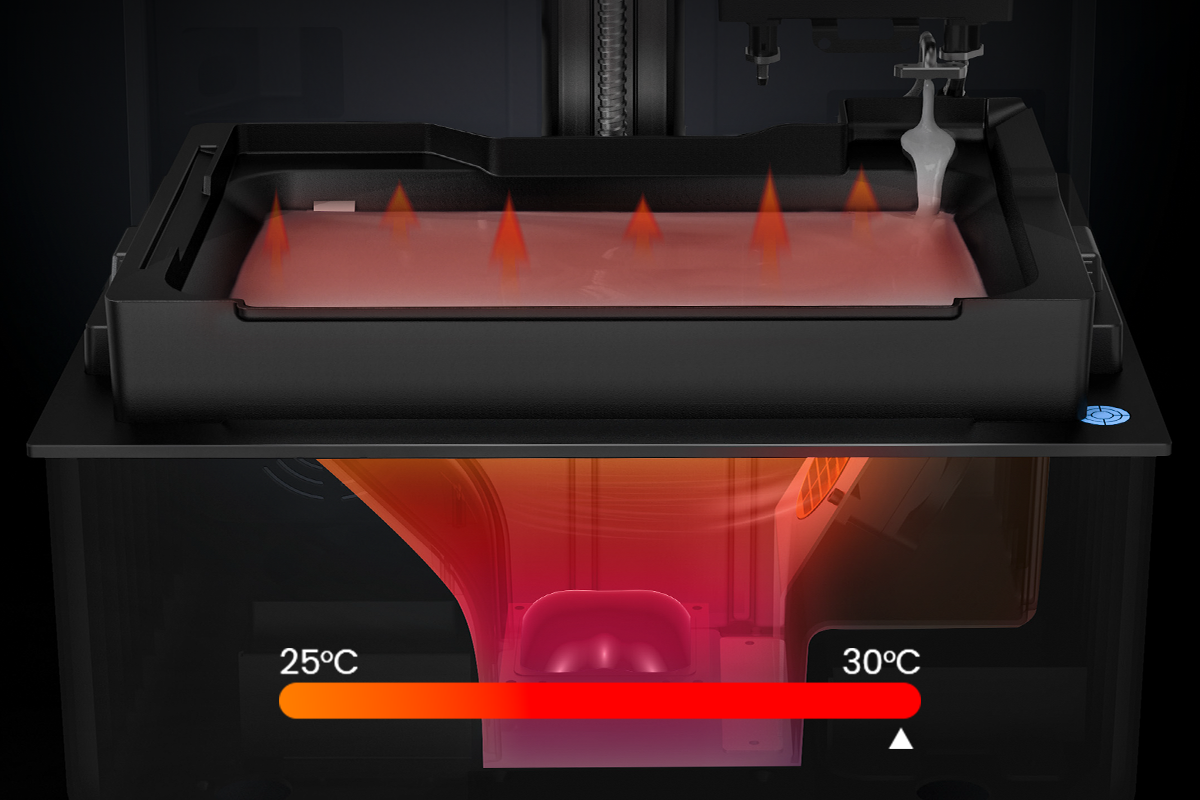

Smart Auto Heating

The intelligent auto-heating system automatically keeps resin at its ideal working temperature, ensuring smooth flow, reliable curing, and consistently exceptional print quality—regardless of the weather.

Auto Heating

Quick Preheat

Boost Efficiency

Reliable Printing

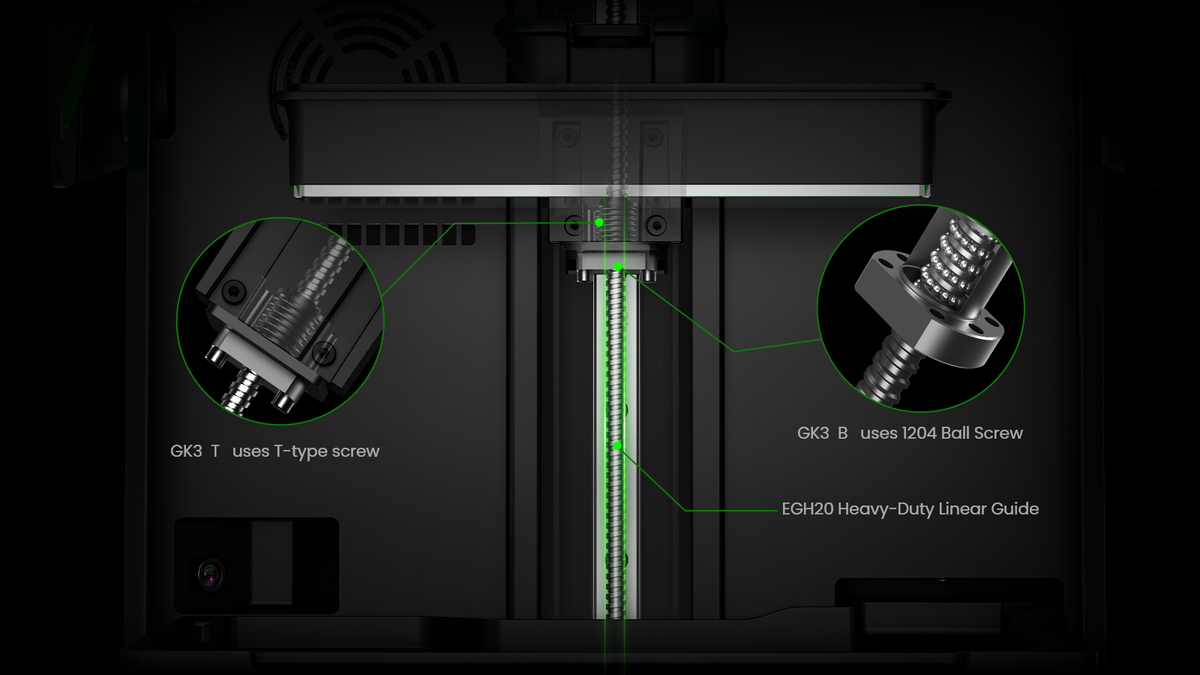

Precision Z-Axis, Rock-Solid Printing

Equipped with a professional-grade Z-axis and heavy-duty linear rails, ensuring exceptional rigidity, reduced vibration, and consistently accurate layer positioning throughout the printing process

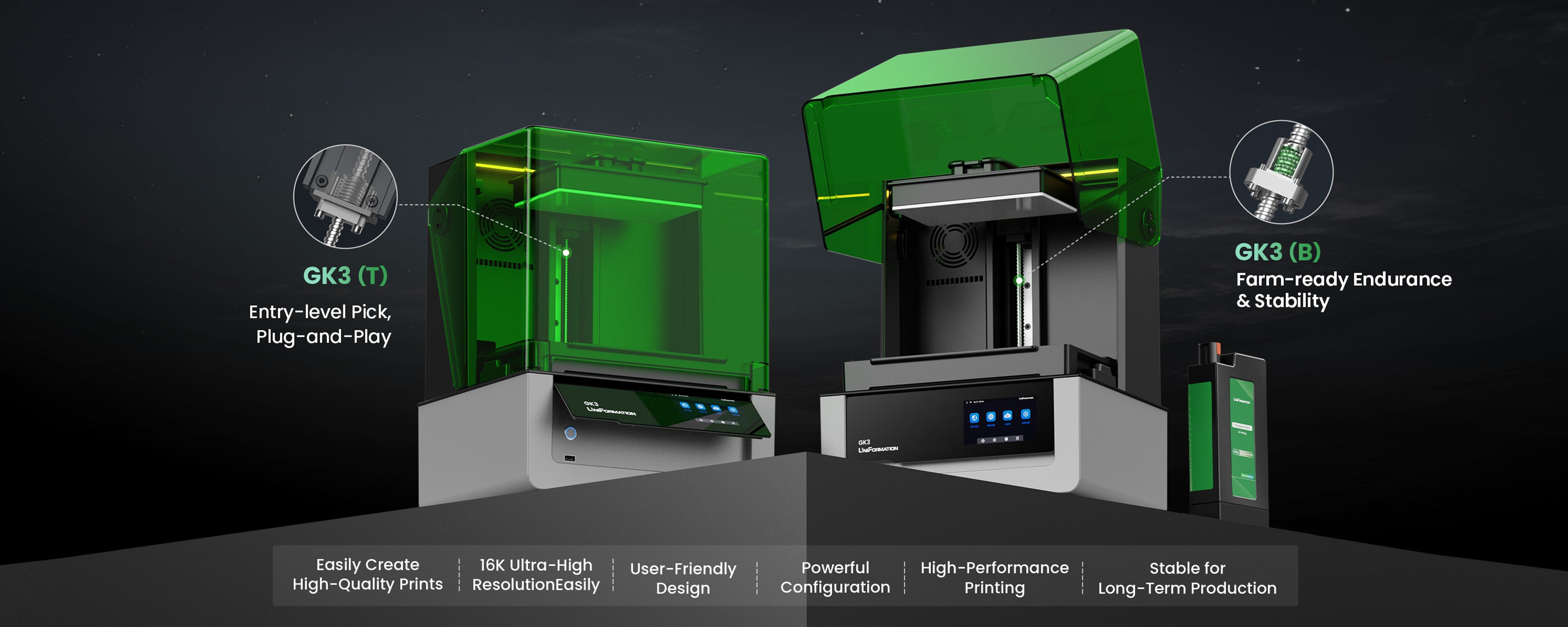

GK3 (B) : B-type Screw

GK3 (T) : T-type Screw

Easy to Start, Smart to Use

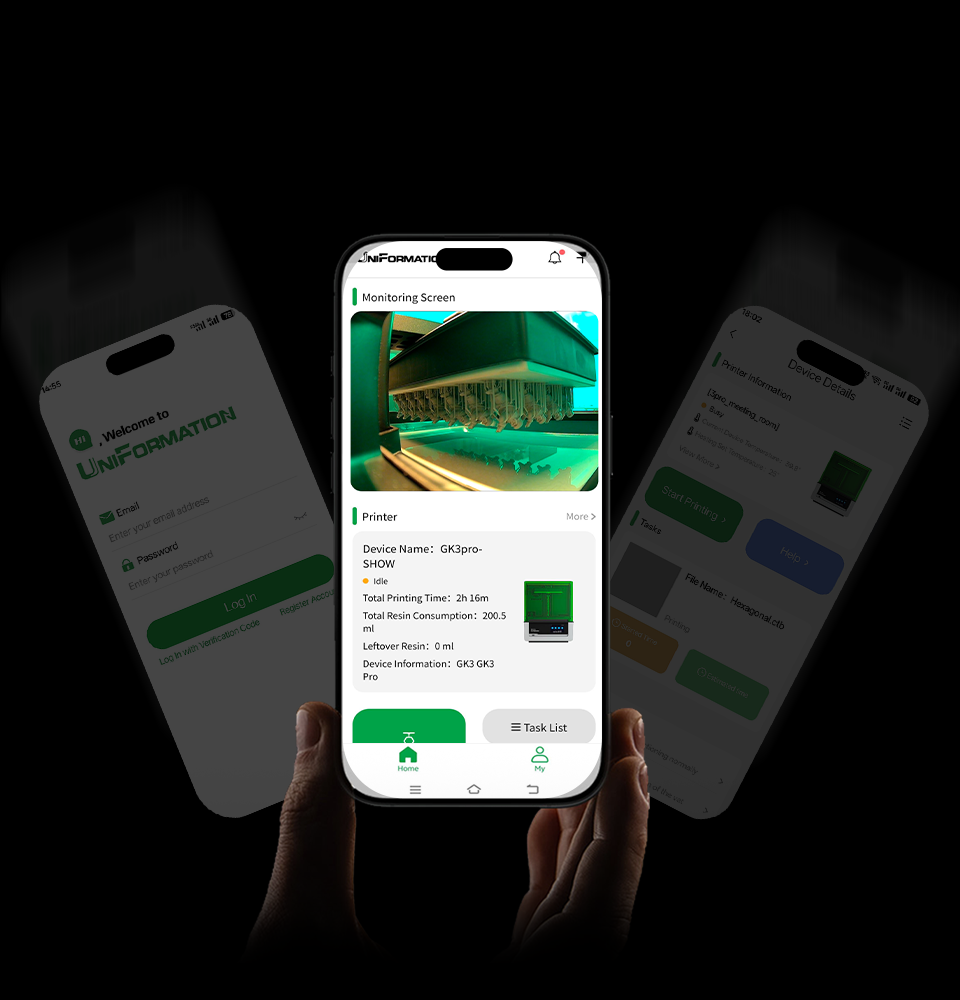

Smart app

Monitor print progress in real time, remotely manage print jobs with one-tap controls, and create shareable time-lapse videos—all designed to make your 3D printing experience smarter, more efficient, and more connected.

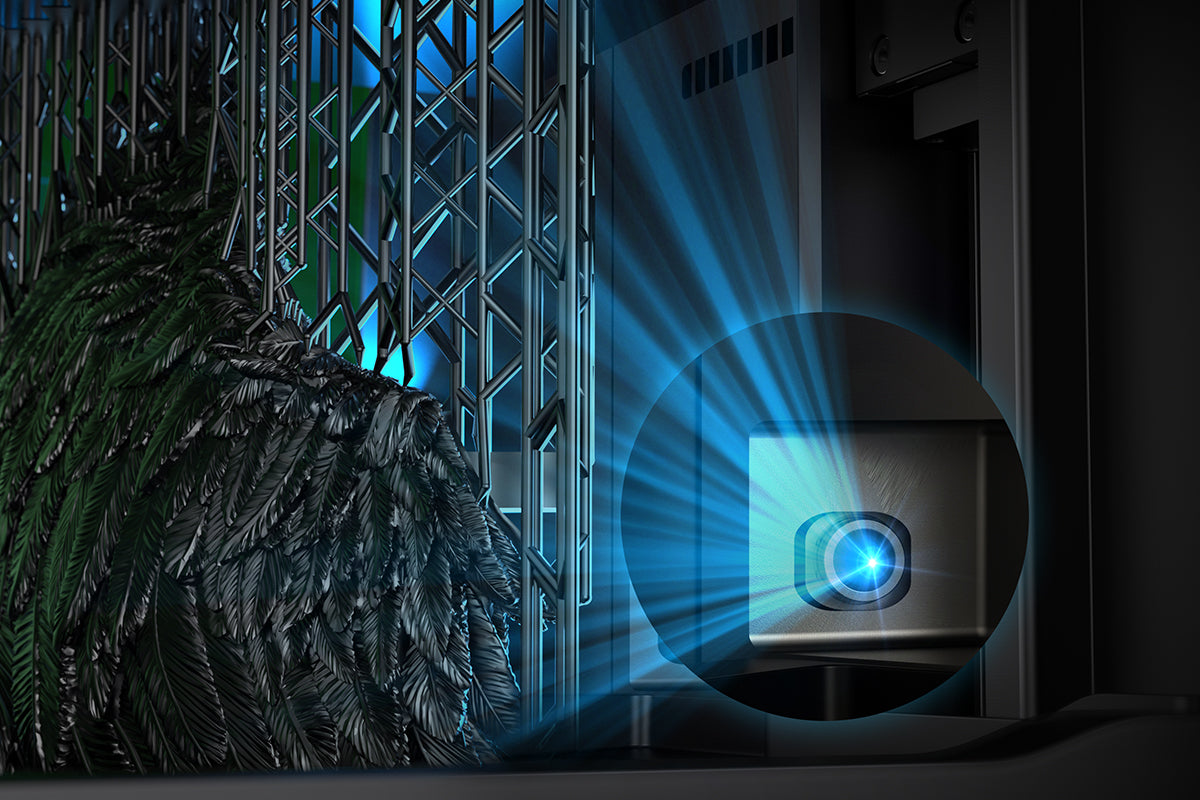

Integrated 720P Camera

The built-in camera keeps you updated on
print progress, ensuring everything runs
smoothly. Additionally, it can capture stunning time-lapse videos of your creations, allowing you to easily share your creative journey.

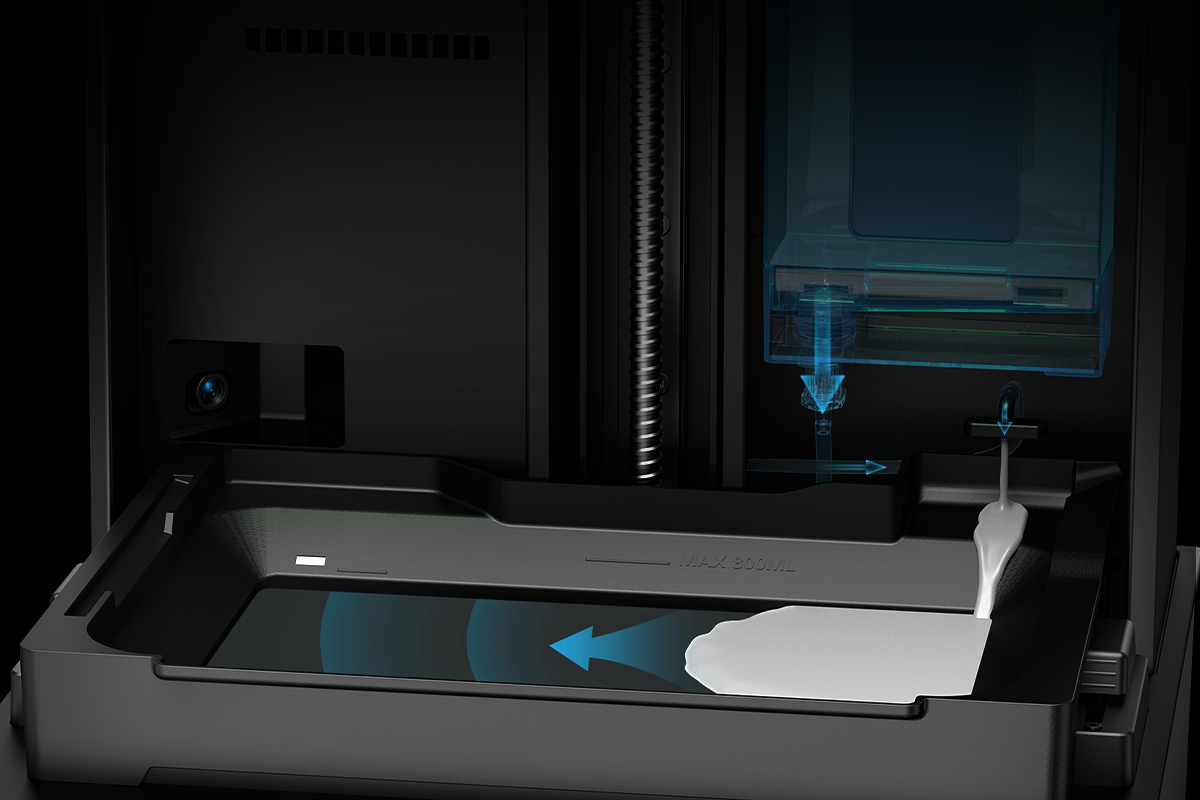

Auto Resin Feeding

Automatic Level Detection
Resin Shortage Prevention
Continuous Resin Feeding
Overflow Protection

Quick LCD Replacement

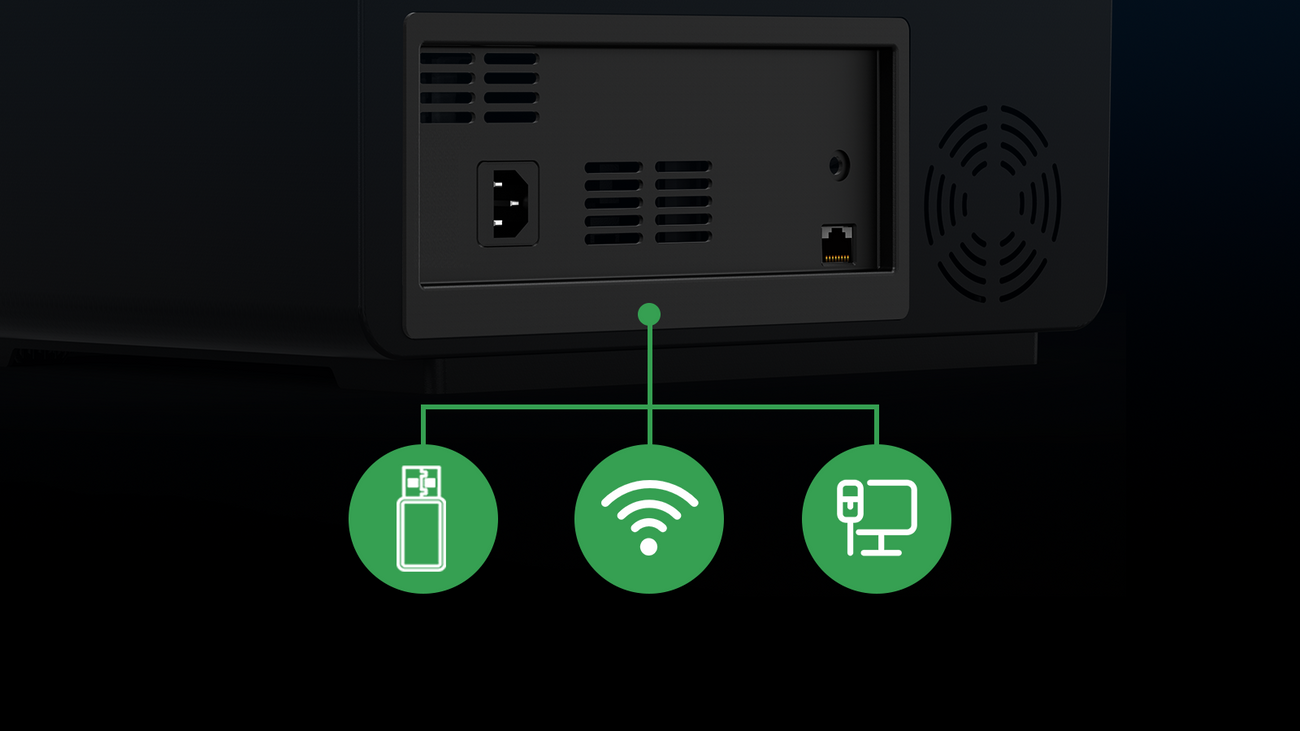

3 Files Transfer Methods

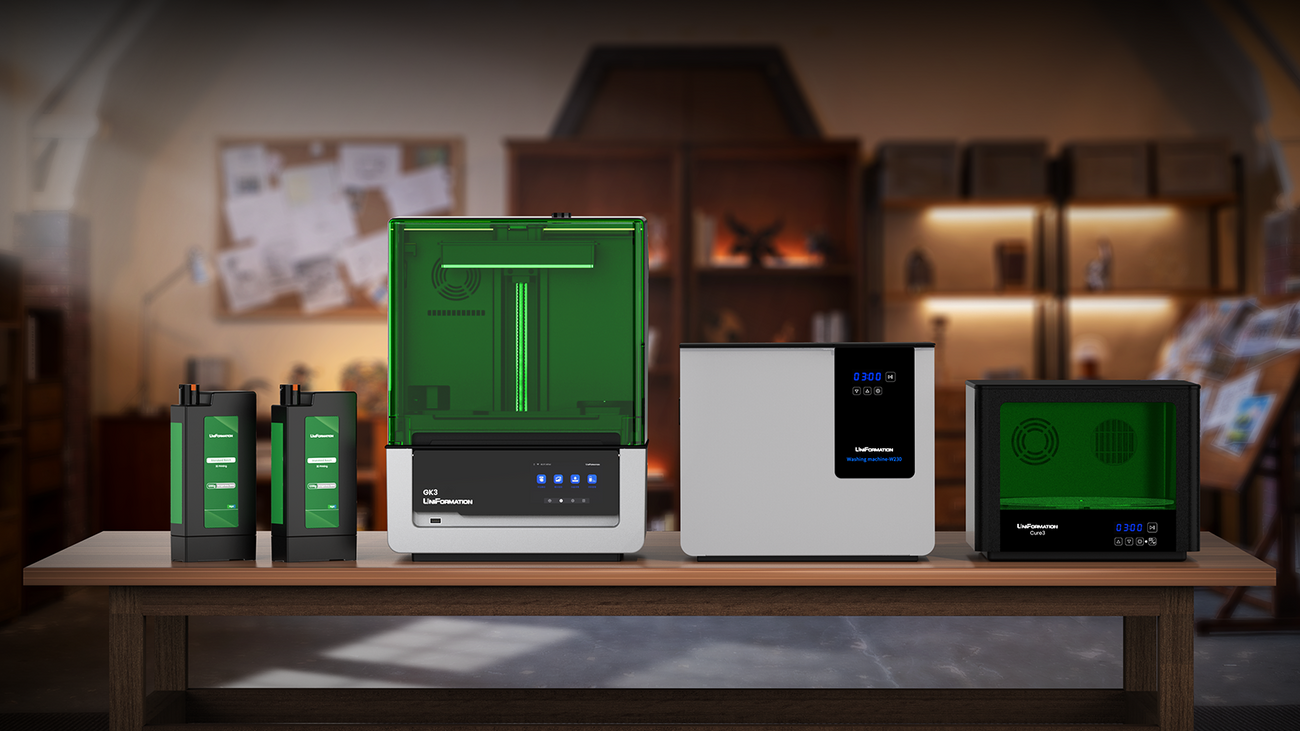

Full Workflow Integration, Simplifying Every Step

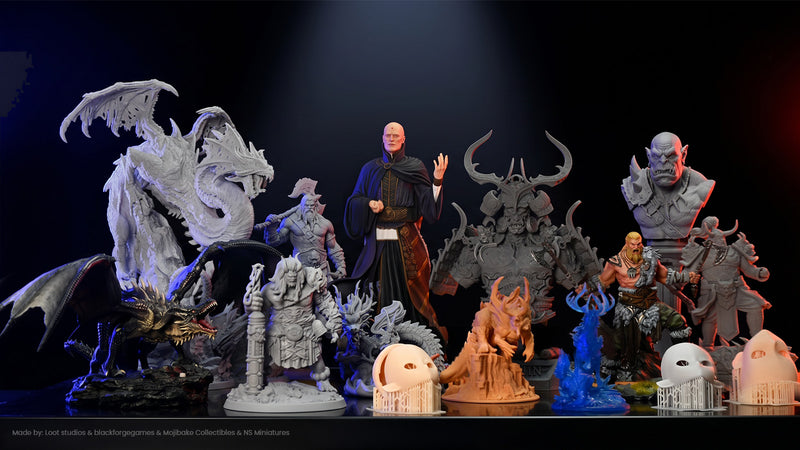

Art Modles

Engineering Prototypes

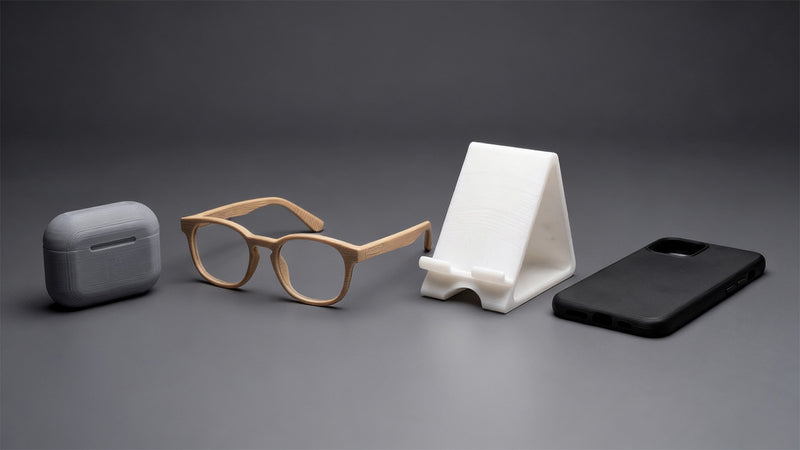

Everyday Applications

Dental Applications

Stance GT

The GK3 allows us to further enhance quality. The parts come out exactly as is, and the supports are removed quite easily. It’s amazing.

Groundeffected

The detail is slightly crisper on these machines. This machine can print whatever those can do almost twice over. I really like their stuff.

KGTropicals

The GK3 has the best build plate in the business, and it's super easy to clean. It's just a beast of a machine. I can't say enough good things about it.

Elvated MakerSpace

The GK3T hits a very rare balance. It's flexible without being fragile, powerful without being locked down, and practical enough to live with day after day.

Tuba Makes

It prints beautifully. Detail is crisp, surfaces are clean, and consistency has been excellent. Reliability has been solid in the time that I've had it.

bombsquig

I got a 3D printer and I'm going to be using that for a lot of my terrain escapades. It's cool to have this big thing. I'm super stoked about this.

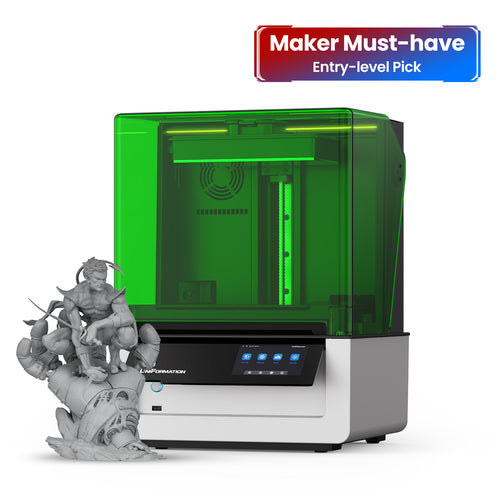

UniFormation GK3

405 nm

211*118*H240mm

16k Ordinary Screen

1.5-2.5s per Layer (0.05mm)

Approx.4600-5600μW/cm²

USB,Wifi,Wired Network

Touchscreen/App

STL,OBJ

15120*6230(16k)

14*19μm

±0.05

GK3 (T) T-type Screw, GK3 (B) Ball Screw

0.03,0.05,0.1mm

✔

1.2kg

25/30℃

UniFormation Slicer/Chitubox/Lychee Slicer

100-240V

Printing 130W,Heating 120W

NFEP

720P,2 Megapixels

392*332*520mm

Standard Resin,Water-Washable Resin,ABS-Like Resin,Other Resin

fjawlkejfla

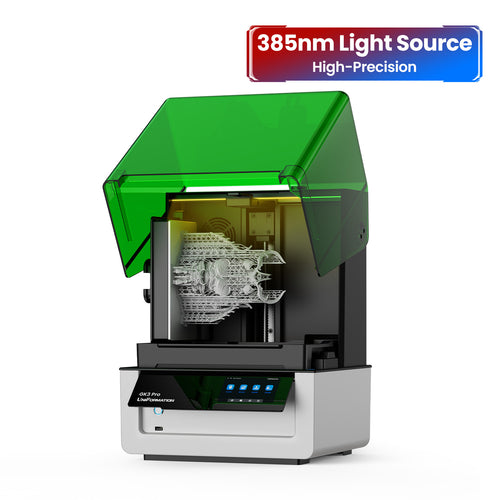

UniFormation GK3 Pro

Shop Now

385 nm

211*118*H240mm

16k High-Transparency Screen

1.5-2.5s per Layer (0.05mm)

Approx.4200-4800μW/cm²

USB,Wifi,Wired Network

Touchscreen/App

STL,OBJ

15120*6230(16k)

14*19μm

±0.05

Ball Screw(Repeatability:±0.005mm)

0.03,0.05,0.1mm

✔

1.2kg

25/30℃

UniFormation Slicer/Chitubox/Lychee Slicer

100-240V

Printing 130W,Heating 120W

CPFA(ACF Optimized Version)

720P,2 Megapixels

392*332*520mm

Transparent Resin,Standard Resin,Water-Washable Resin,ABS-Like Resin,Other Resin

fjawlkejfla

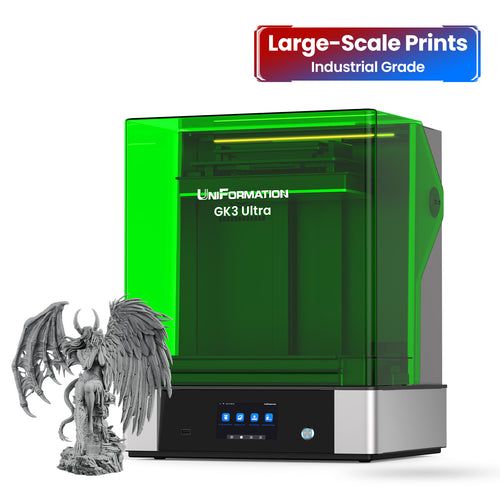

UniFormation GK3 Ultra

Shop Now

405nm

300*160*H300mm

16k Ordinary Screen

2-4s per Layer (0.05mm)

Approx.4900-6400μW/cm²

USB,Wifi,Wired Network

Touchscreen/App

STL,OBJ

15120*6230(16k)

20*26μm

±0.05

Industrial-grade KK60 motion module

0.03,0.05,0.1mm

✔

1.2kg

25/30℃

UniFormation Slicer/Chitubox/Lychee Slicer

100-240V

Printing 120W,Heating 200W

NFEP

455*400*575mm

Standard Resin,Water-Washable Resin,ABS-Like Resin,Other Resin
